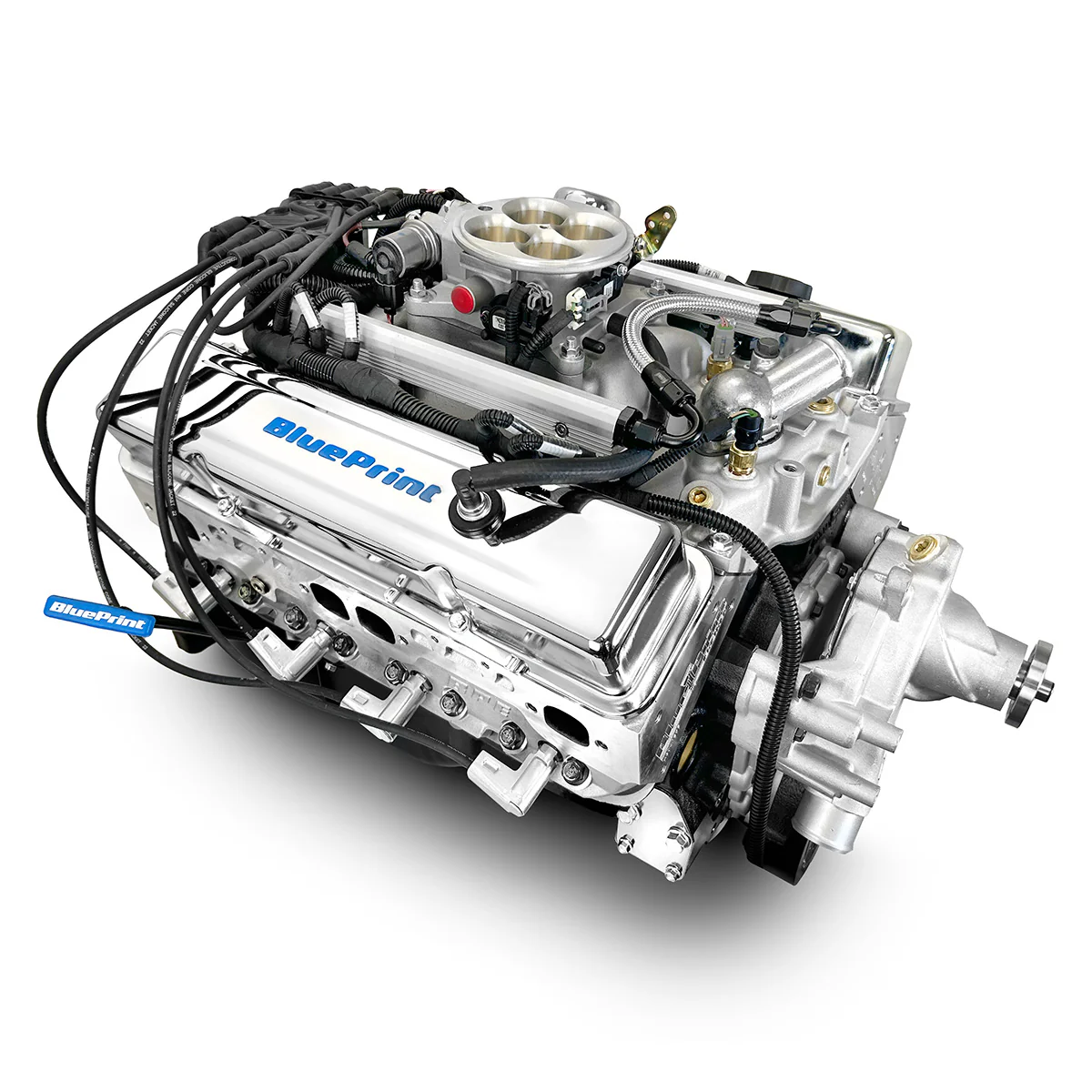

GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Multi-Port Fuel Injected
OVERVIEW:
The BluePrint 400 Small Block Chevy compatible performance crate engines are dyno tested at our factory with guaranteed power levels of 500 horsepower and 500 ft. lbs. of torque. The BluePrint designed, multi-port fuel injection system, complete with ECU and full Wiring Harness, has had extensive calibration and development work in creating this specifically tuned and optimized engine that goes well beyond the performance of self-learn EFI systems on the market today. This BluePrint ECU is designed for hassle-free start up and operation. The ECU controls ignition timing and fuel and installs with 3 simple wired connections (Main Battery, Switched 12V Ignition Wire and Fuel Pump).
DESCRIPTION:
- Horsepower & Torque: 500 Horsepower / 500 ft. lbs. Torque
- Compression Ratio: 10.3:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crankshaft
- BluePrint Engines Forged Pistons
BLOCK:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.125" Bore
ROTATING ASSEMBLY:
- BluePrint Forged Crankshaft
- 3.750" Stroke
- 5.700" Connecting Rods
- Forged Pistons
- Internally Balanced Front - Externally Balanced Rear
CYLINDER HEADS:
- BluePrint Performance Aluminum Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.600" Exhaust Valves
- 220cc Intake / 65cc Exhaust Runners
CAM SPECS:
- Hydraulic Roller
- .553 Intake / .576 Exhaust Lift
- 236 Intake / 242 Exhaust Duration
- @.050-110 Degree Lobe Separation
IGNITION TIMING:
- Computer Controlled by BluePrint ECU
INCLUDES:
- BluePrint Multi-Port Fuel Injection - Self-Learning Electronic Control Unit (ECU)
- Single Plane Machined Aluminum Intake Manifold
- Polished Chrome "BluePrint" Engraved Valve Covers
- Polished Chrome BluePrint Air Cleaner
- Satin Aluminum Water Pump
- Spark Plugs and Wires
- Harmonic Balancer
- Timing Cover
- Distributor
- Oil Pan
